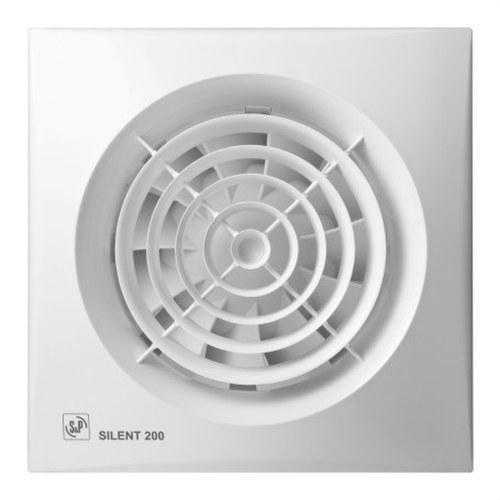

SILENT-200 CZ Design 3C Bathroom Extractor Fan

The Soler y Palau SILENT-200 CZ Design 3C bathroom extractor fan is a modern and efficient solution for bathroom and toilet ventilation. With an aesthetic and functional design, this model provides an airflow of 175 m³/h, ensuring effective ventilation to eliminate humidity and maintain a fresh and healthy environment in medium to large-sized spaces.

One of the key features of this extractor is its low noise level, designed to minimise acoustic disturbances with a very low noise level, ideal for those seeking efficient and discreet ventilation. The 230V-50Hz motor of this extractor has optimised power and is equipped with ball bearings that prolong its durability and ensure smooth operation. Additionally, the motor is mounted on silent-blocks, which significantly reduce vibrations and noise, ensuring quiet and stable performance.

The SILENT-200 CZ Design 3C also includes an anti-return valve that activates automatically when the fan is in operation. This valve prevents the entry of cold air and the loss of heating when the fan is not in use, improving the energy efficiency of the space. Furthermore, the extractor features a pilot light that indicates its operation, adding a practical and modern touch to its design.

This extractor is designed to withstand humid environments, thanks to its IP45 protection, making it suitable for installations in bathrooms and toilets, where humidity and water splashes are common. It also includes a thermal protector that allows it to operate at temperatures of up to 40°C, ensuring safe and prolonged use.

The SILENT-200 CZ Design 3C is designed for easy installation both on the ceiling and the wall, with a recess diameter of 116 mm. Its installation is carried out through electrical terminals and is compatible with standard ducts, facilitating its integration into existing ventilation systems.

Technical Specifications:

• Model: SILENT-200 CZ Design 3C
• Type of fan: Low noise level axial
• Power: 8W
• Airflow without pressure: 175 m³/h
• Connection voltage: 230V-50Hz
• Thermal protection: Yes
• IP protection: IP45 (splash-proof)
• Insulation class: II
• Bearings: Ball bearings
• Mounted on silent-blocks: Yes
• Anti-return valve: Yes, built-in
• Pilot light: Yes
• Recess diameter: 116 mm
• Height: 188 mm
• Width: 188 mm
• Maximum working temperature: 40°C

Advantages of the SILENT-200 CZ Design 3C Extractor:

• Quiet operation: With a low noise level, this extractor ensures efficient ventilation without generating annoying noises, perfect for bathrooms where acoustic comfort is essential.

• Efficiency and energy saving: The anti-return valve prevents the entry of cold air and heating leaks, improving the energy efficiency of the environment.

• Modern and durable design: With IP45 protection and a contemporary design, this extractor is ideal for modern bathrooms, offering reliable and safe performance.
